We got the car VW Cabrio 1998 and I did some repairs and got in running. Since the fuel injection was more or less not functioning, I converted it to carburators. Claudia drove the car for a few years and when we moved to the new house in 2003 it was parked for a while, since it need some work again, and other things had priority. In 2012 we decided to bring it back on the road, when I found some major rust and we decided that it will need a complete retoration.

2012 Here we go, the disassembly begins

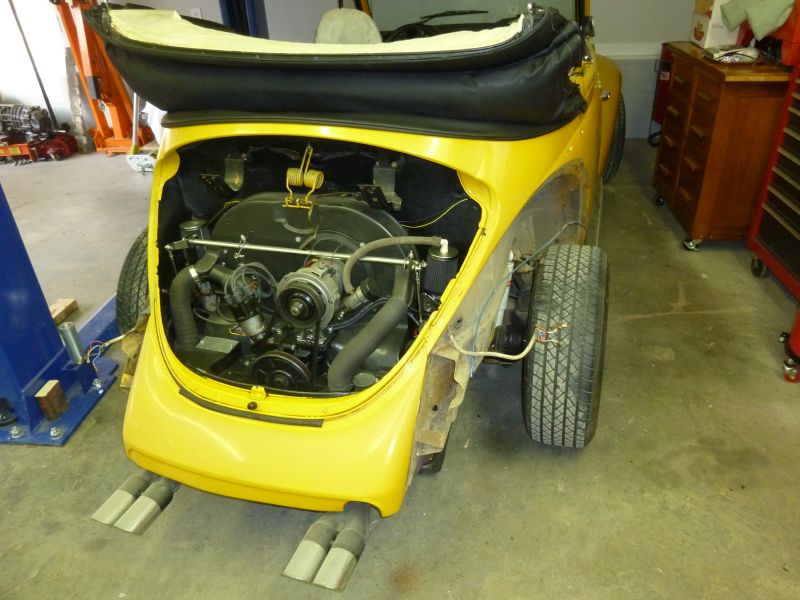

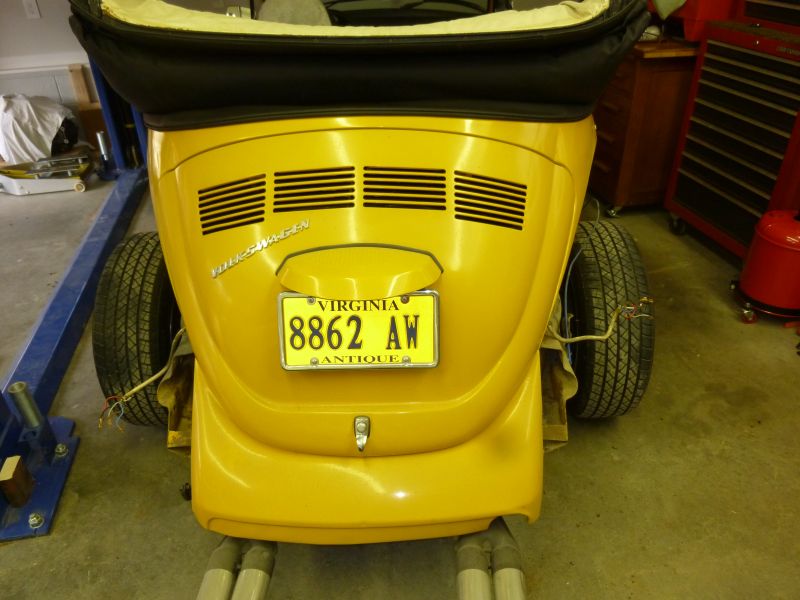

Starting with the fenders and deck lid.

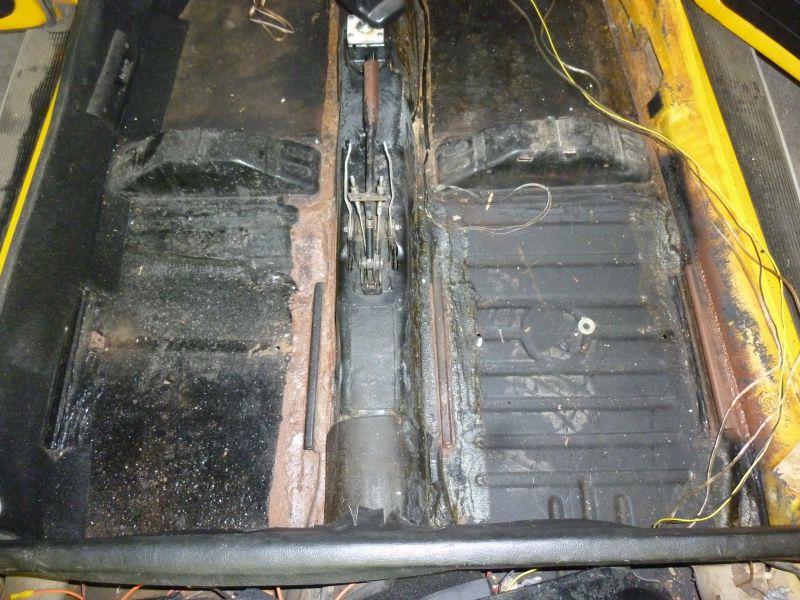

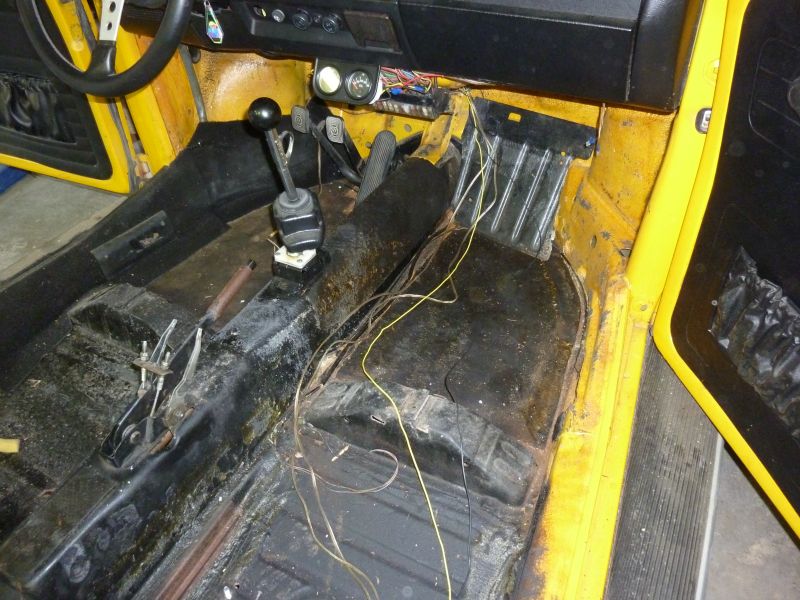

Next, the interior

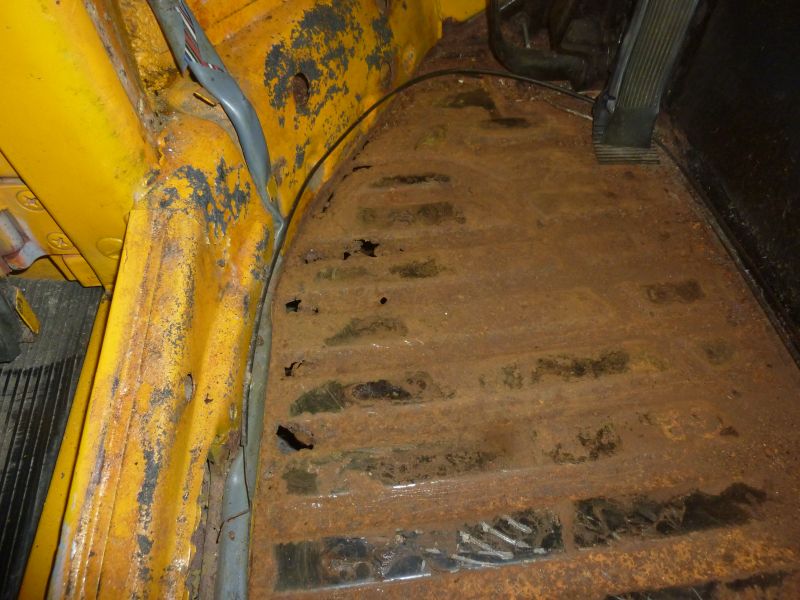

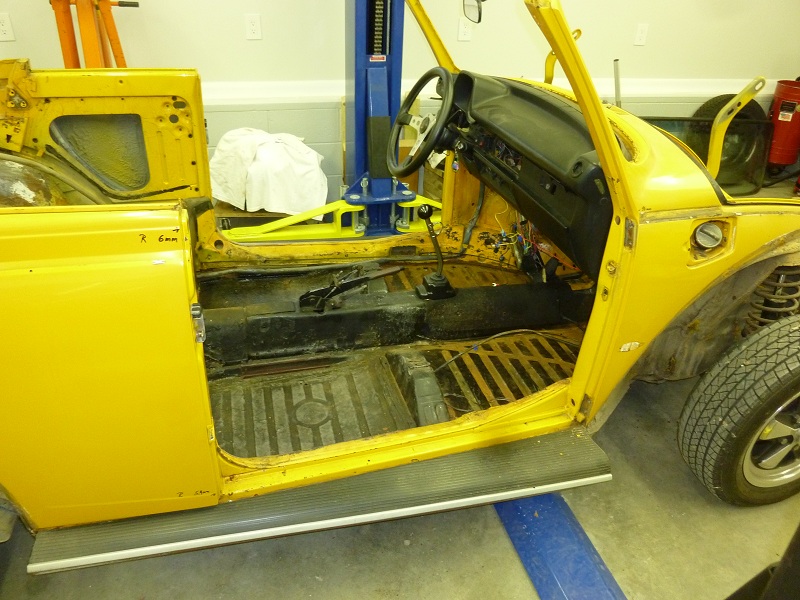

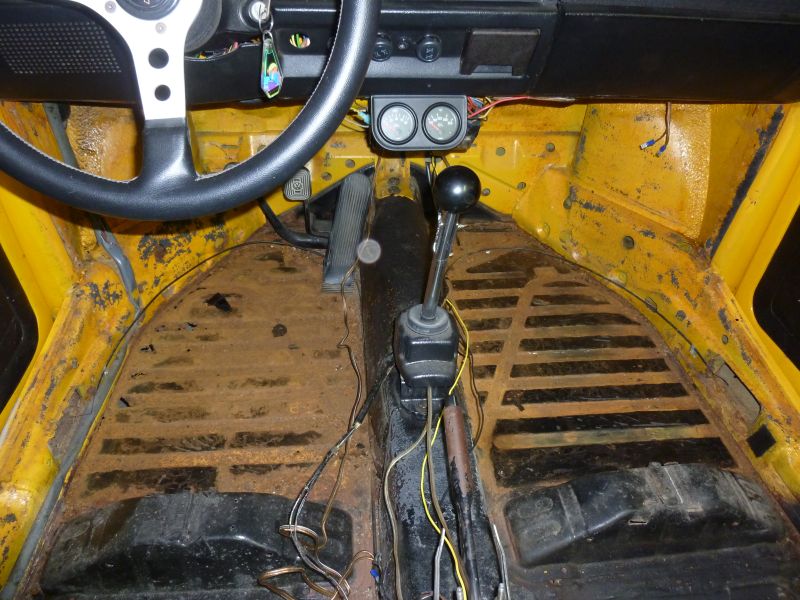

It is clear, the complete floor pans need to be replaced.

Next, the front

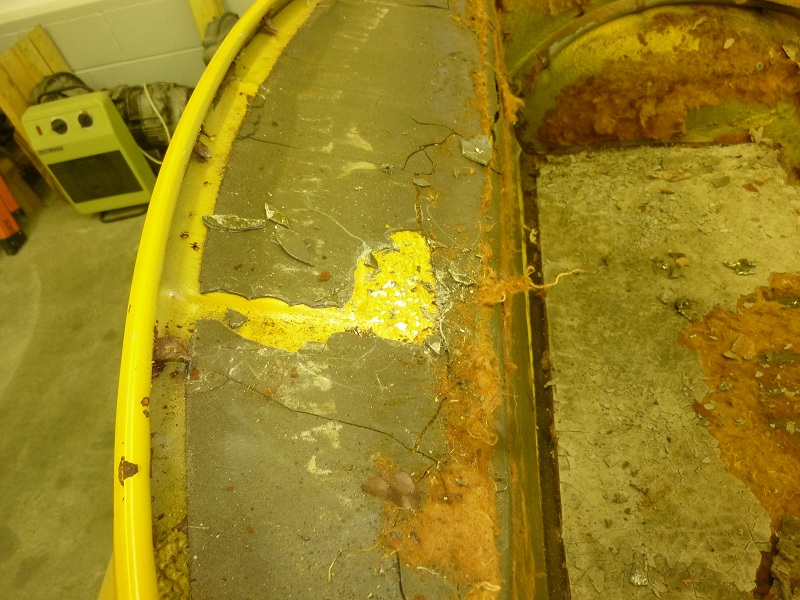

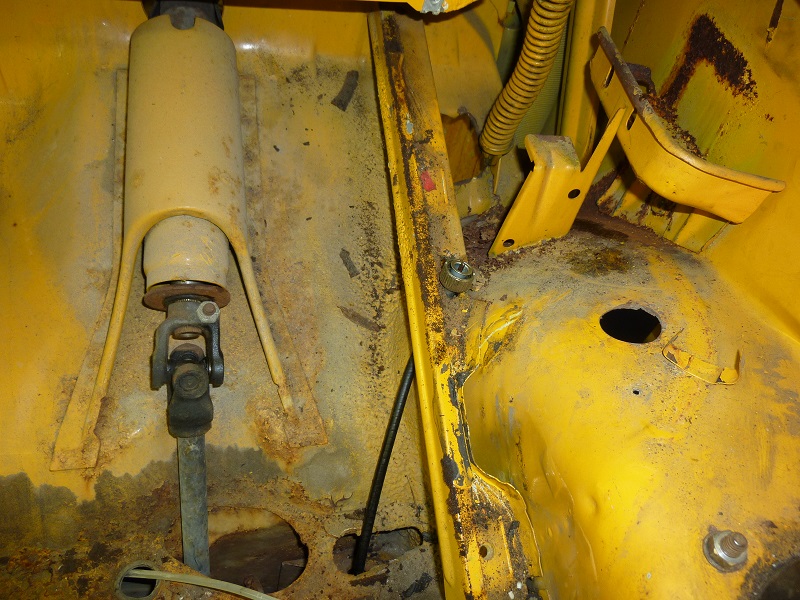

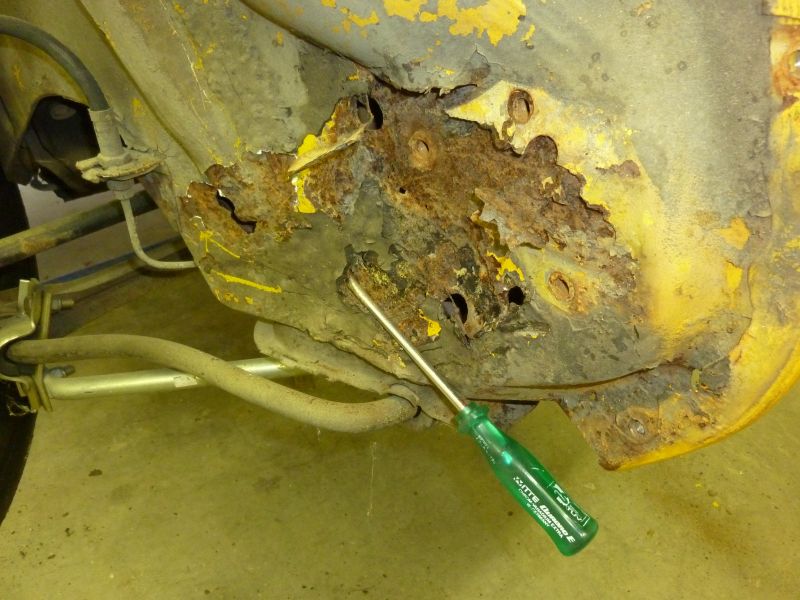

After the fenders were removed I found some bad areas

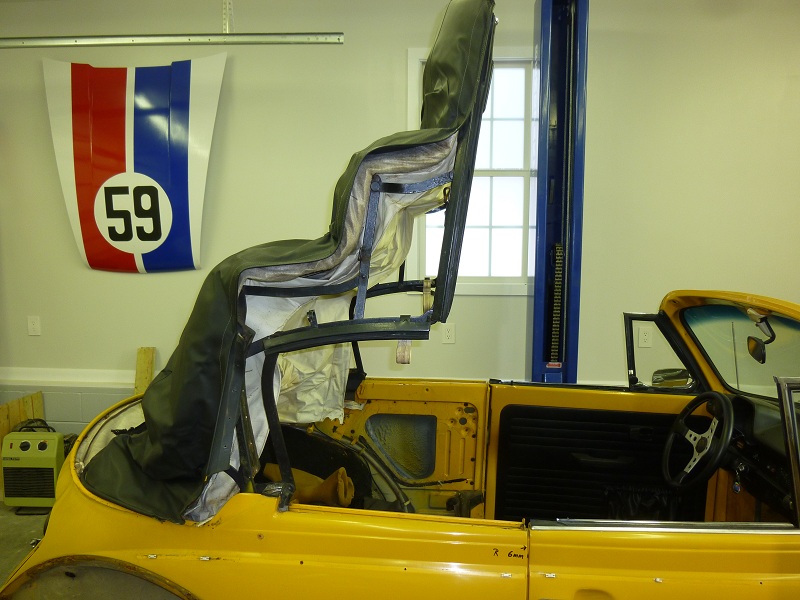

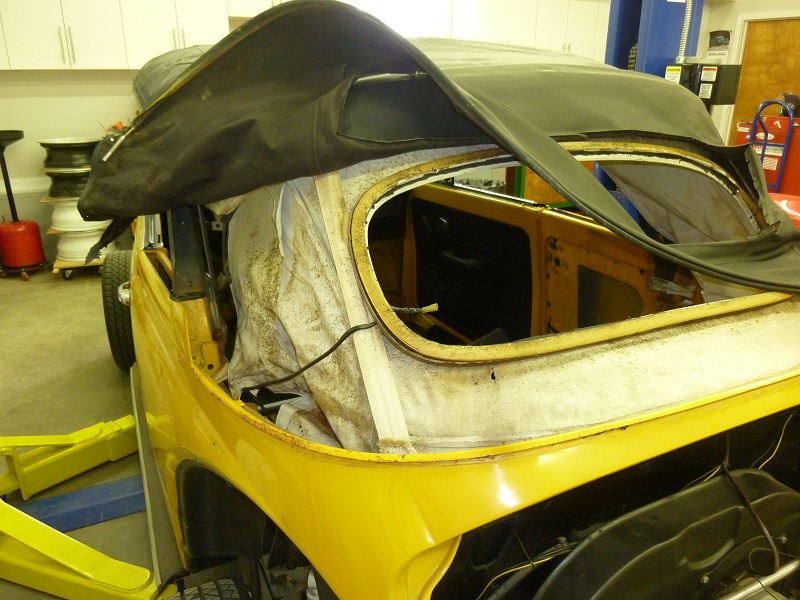

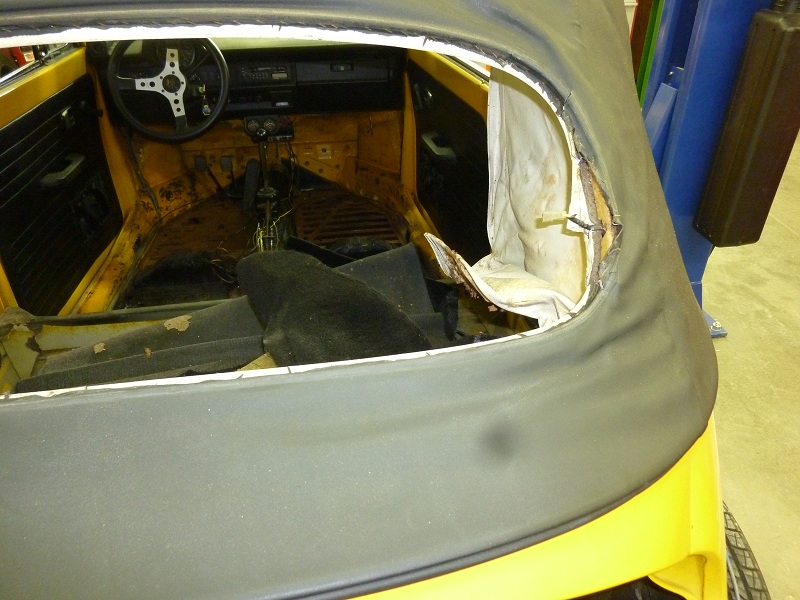

Next, the removal of the convertible top.

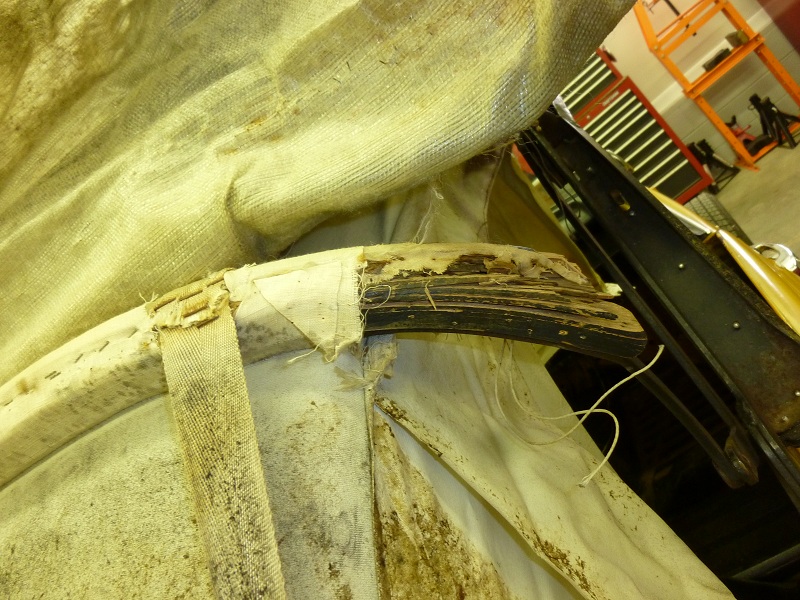

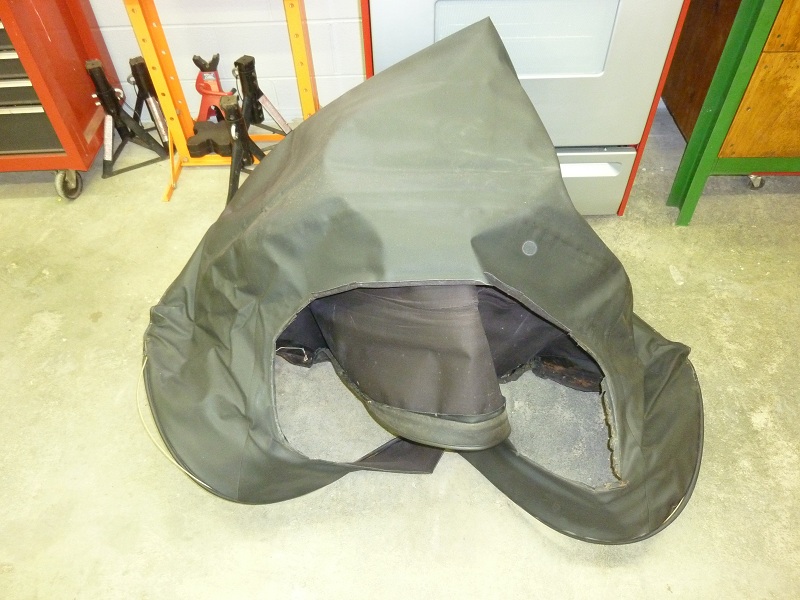

The outer skin is off, and I found some rotten wood.

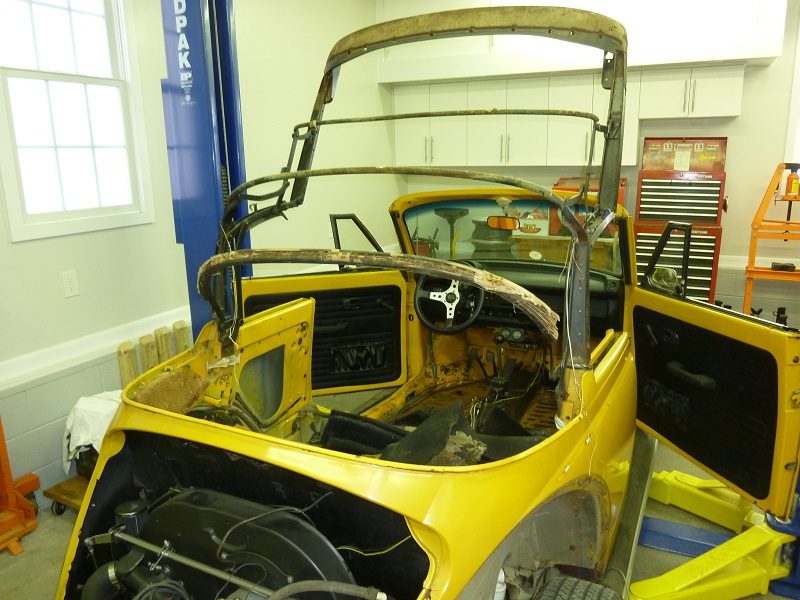

Just the top frame is left to remove.

Next, the sound mats, with heat gun and scraper.

Doors off, they have some rust at the bottom, details later.

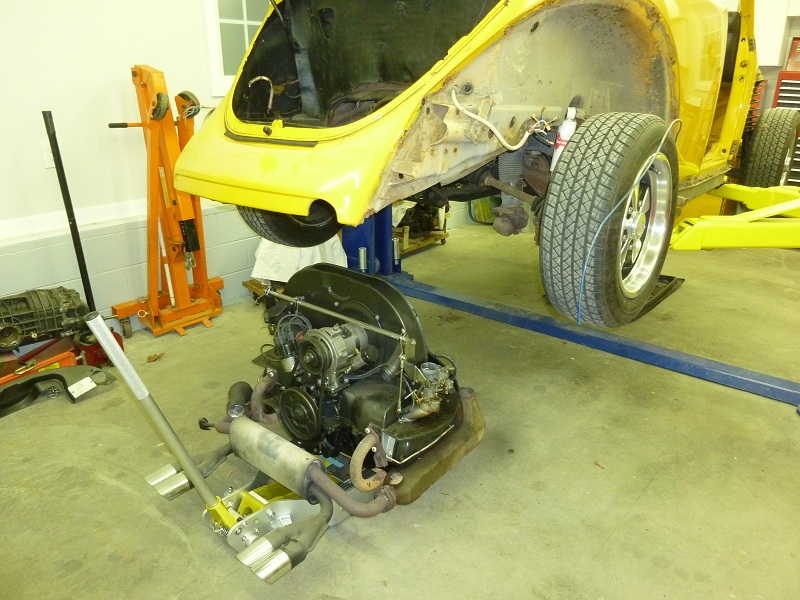

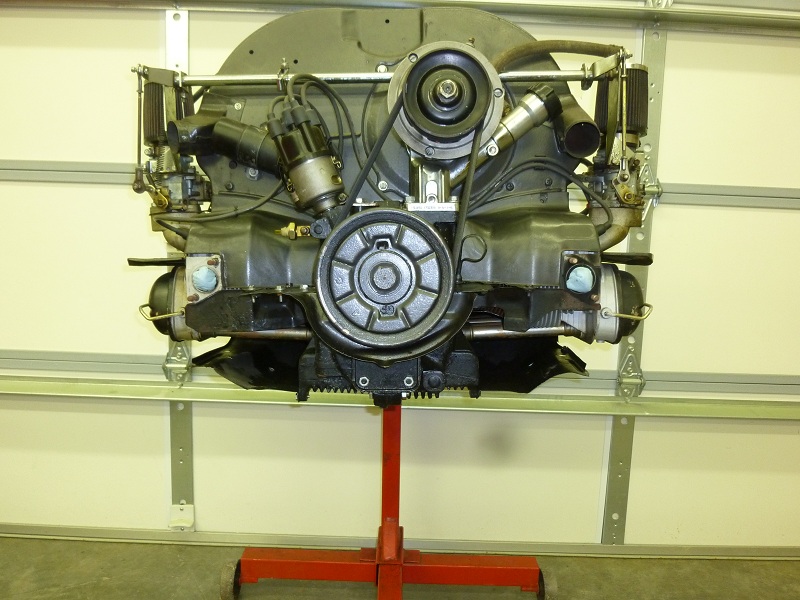

Engine is also out, a little easier as the 911.

The dash is gone, the wire harness from the fuse box to the rear end as well, and the windshield.

Removed the rest of the wire harness. Disassembled the doors etc. Here some pictures. What happen to this car ????

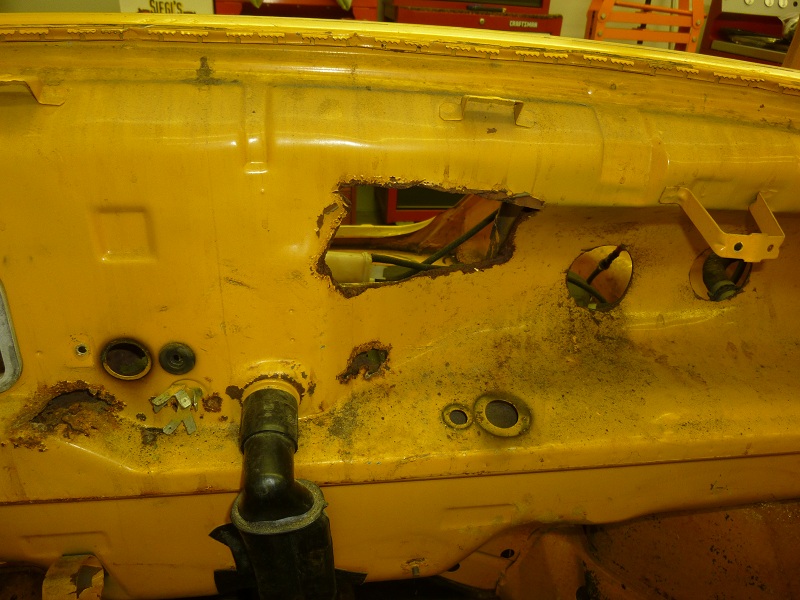

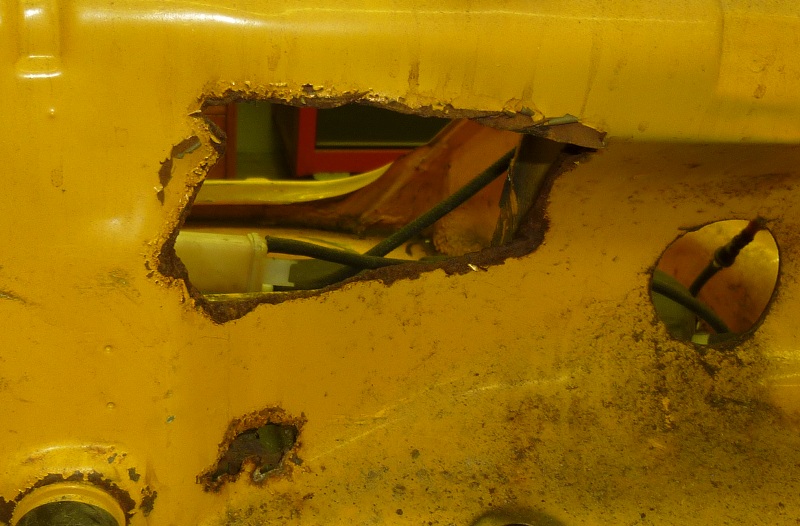

Why does it have a hole, and it looks like somebody cut it out with a chainsaw.

Anyway, I think I need to fix this, besides other holes.

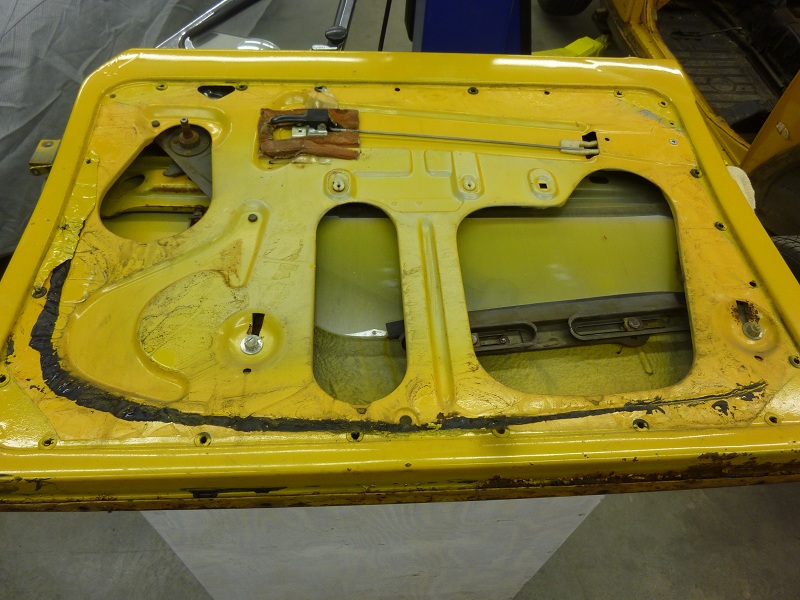

Here is one door. It has some rust at the bottom.

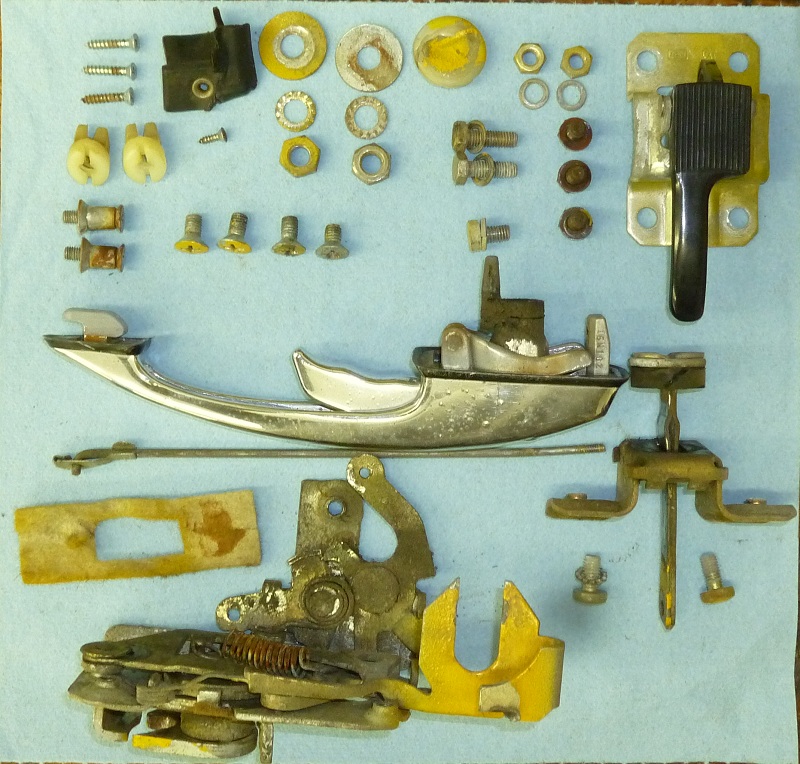

Door Hardware Art

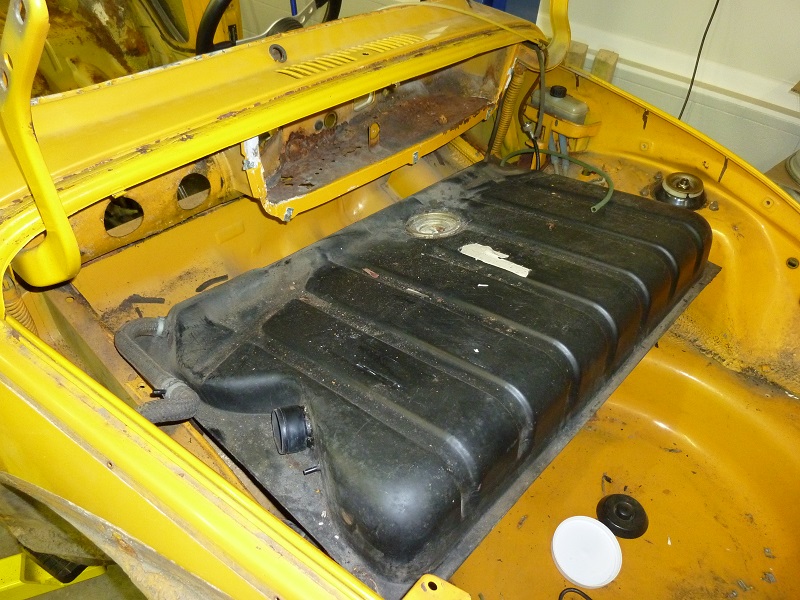

Drained and removed the gas tank.

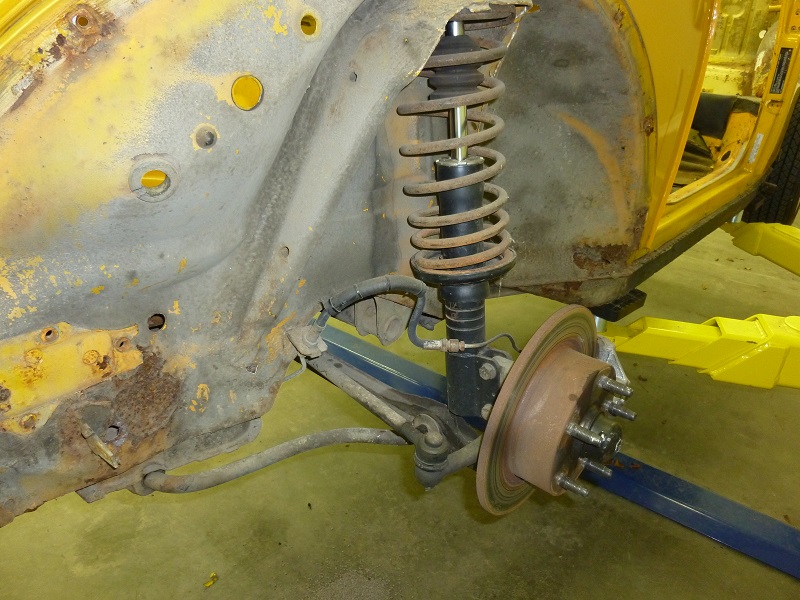

Next, the front suspension

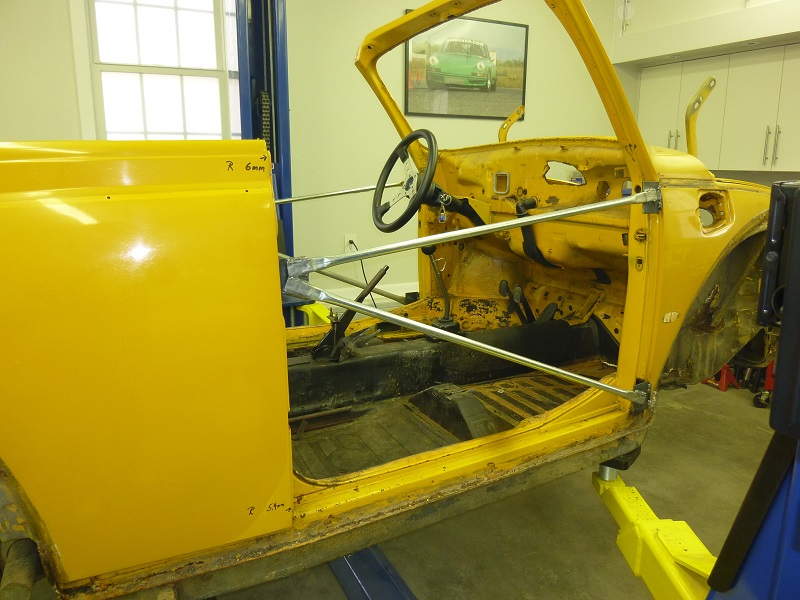

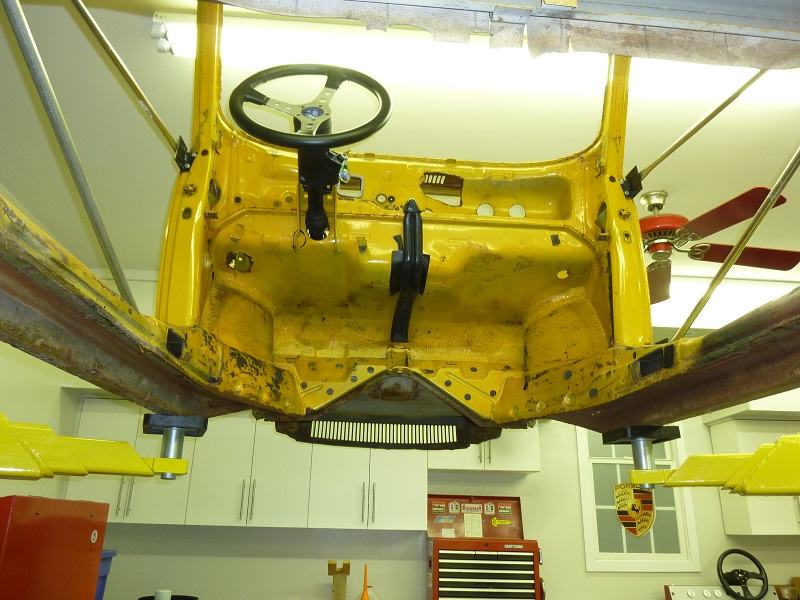

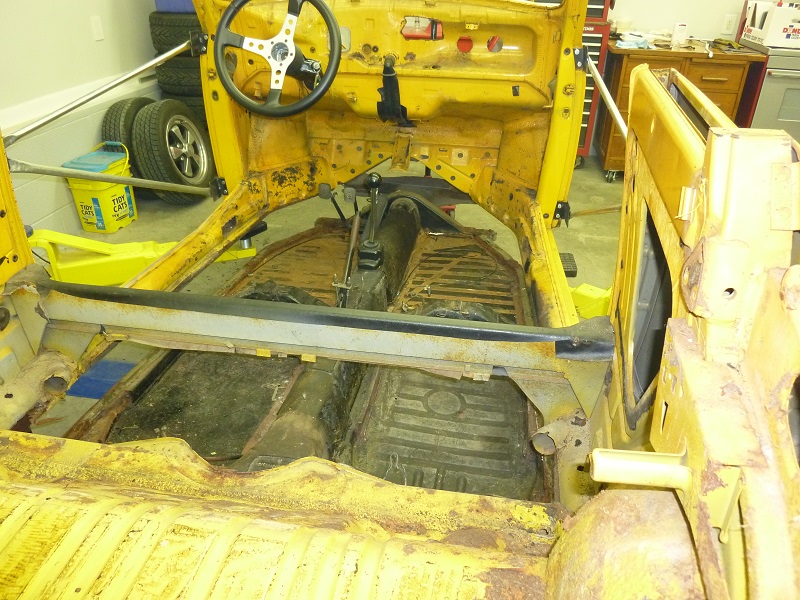

I made some braces for the upper part of the body, where the doors were. And then split to body from the chassis. Installed the braces

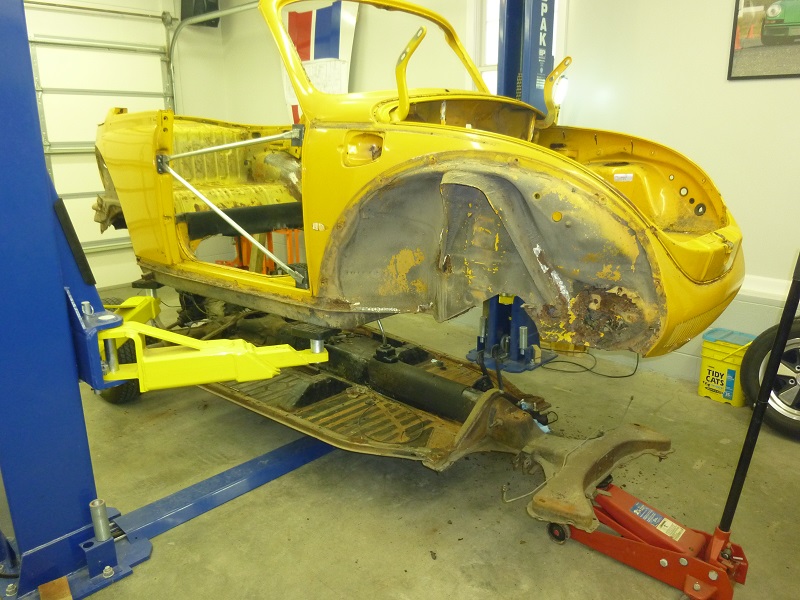

Separating the chassis and the upper part

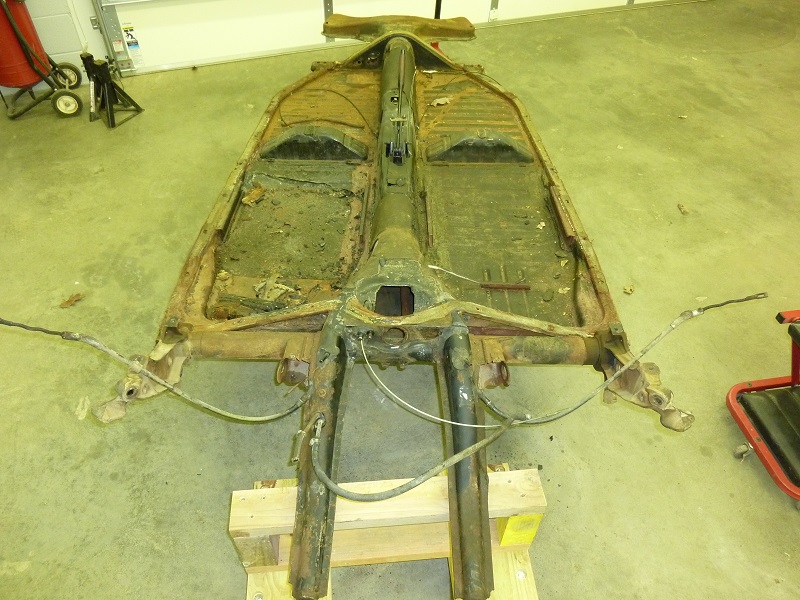

I got the transmission and rear suspension removed
