Media Blasting Cabinet

I built my own Blasting Cabinet. I got the parts from TP Tools and the box I made from plywood and 2x4

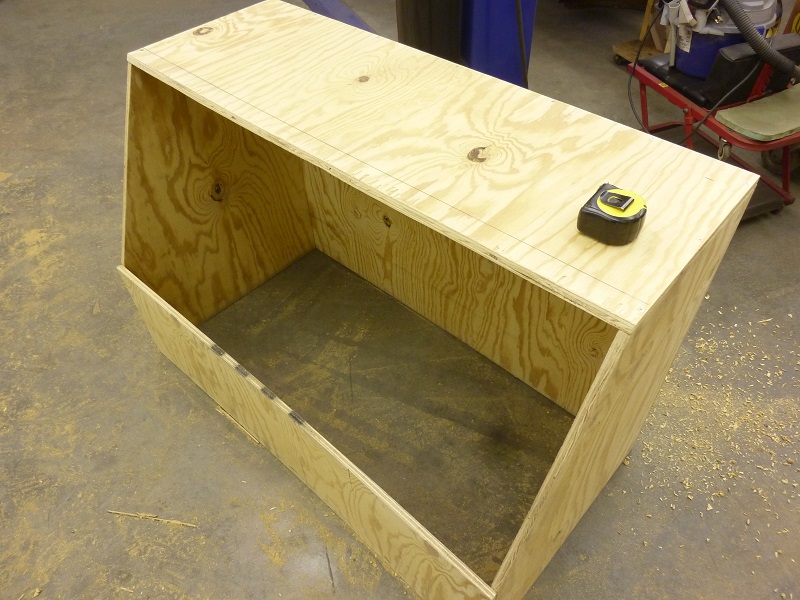

BUILDING A GOOD SIZE BLASTING CABINET 48 X 24 X 32

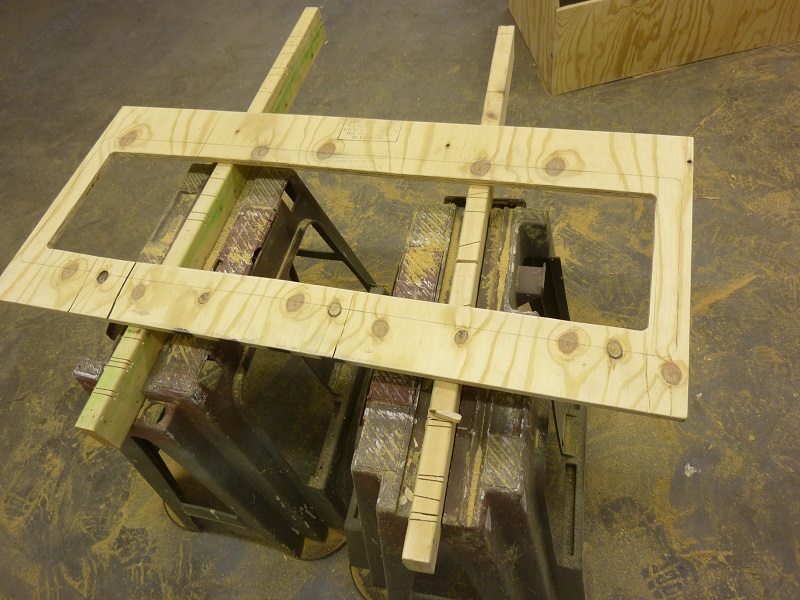

Cutting out for the window

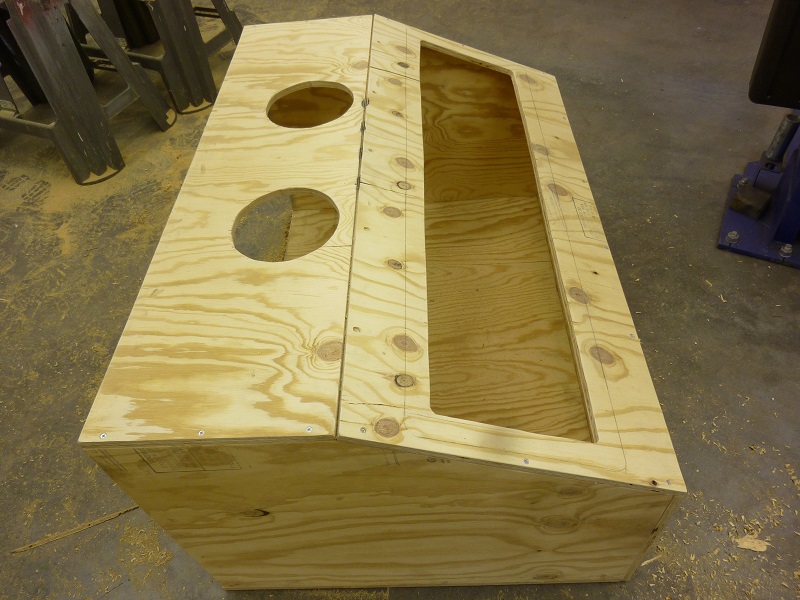

And the holes for the gloves

Caulking all the cracks

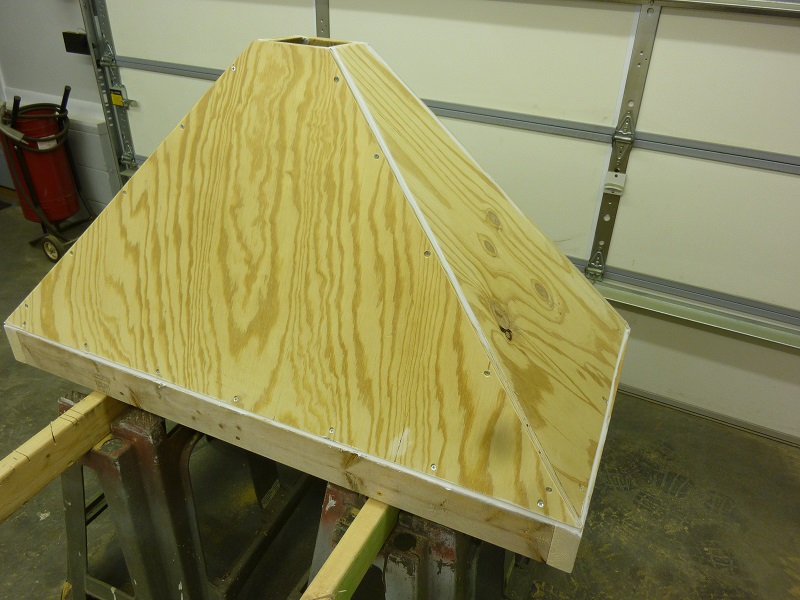

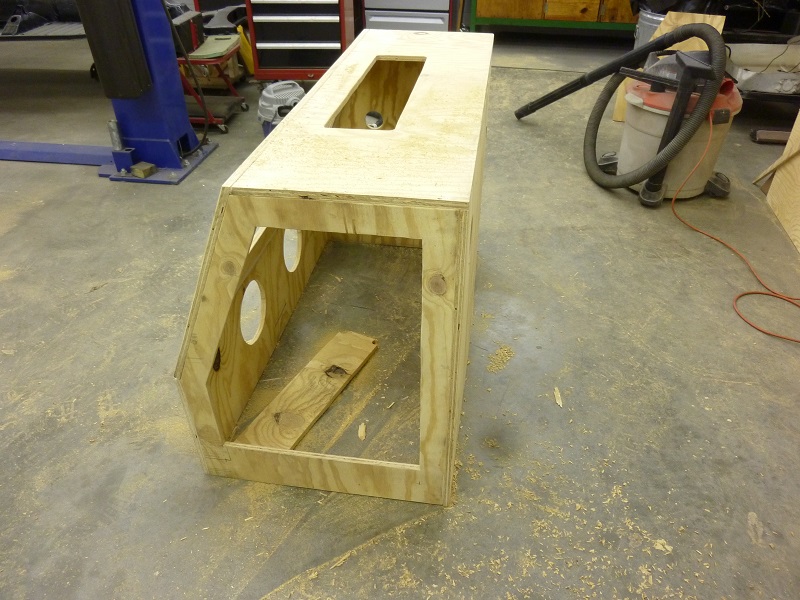

Building the bottom part

It sits upside down

Cutting a hole for the light

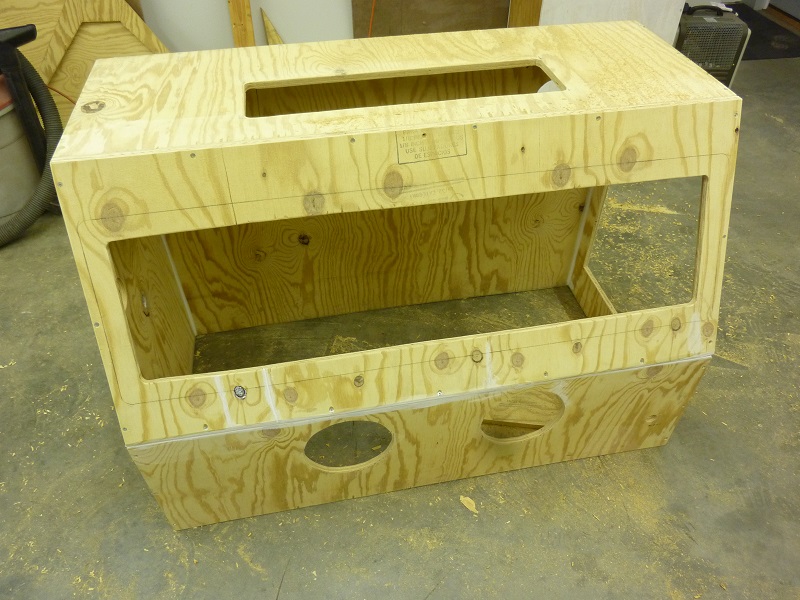

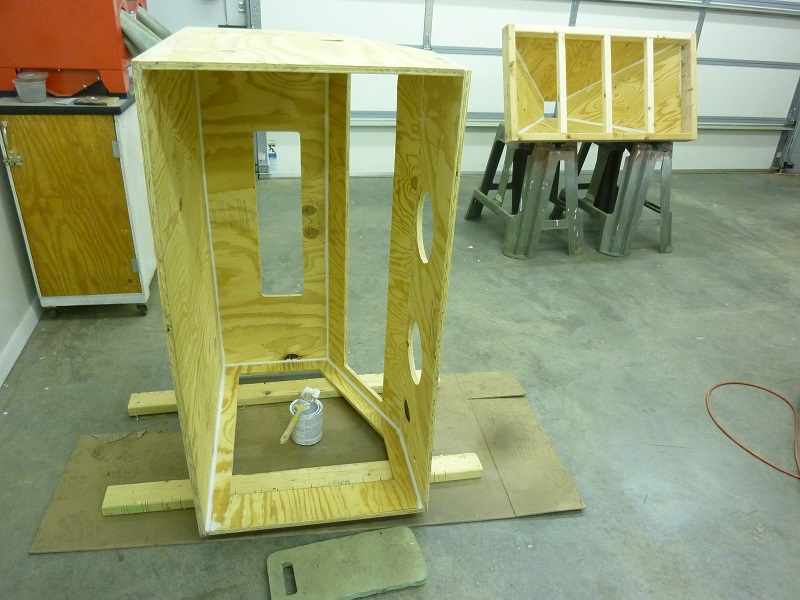

Side opening for the door is also cut

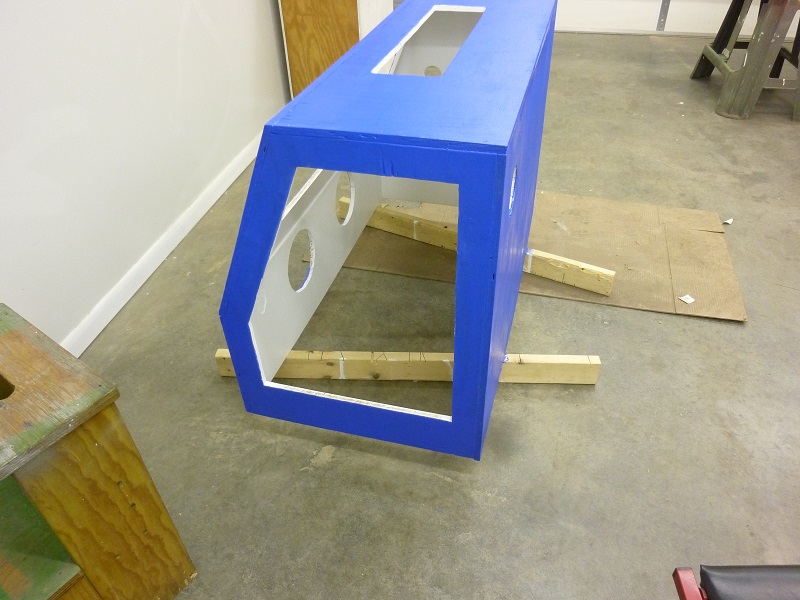

Ready for primer and paint

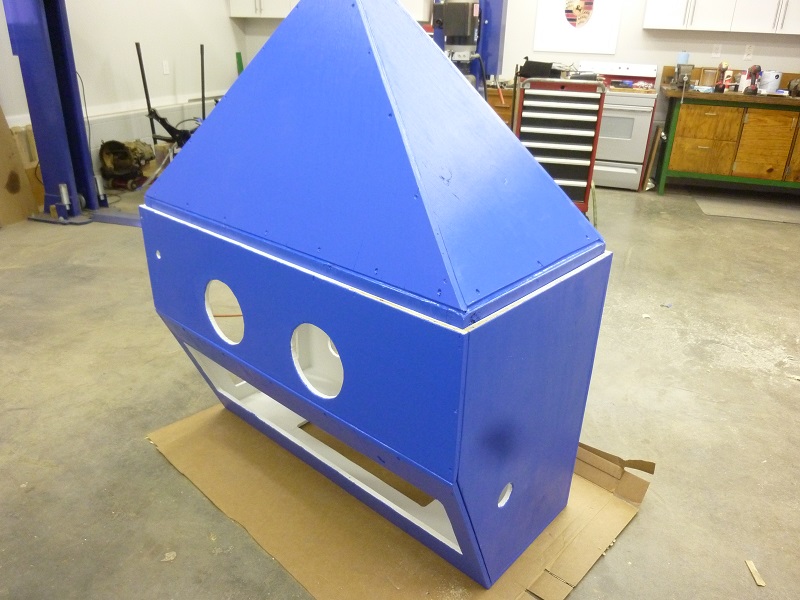

Still had that blue paint, and it goes nice with the lift

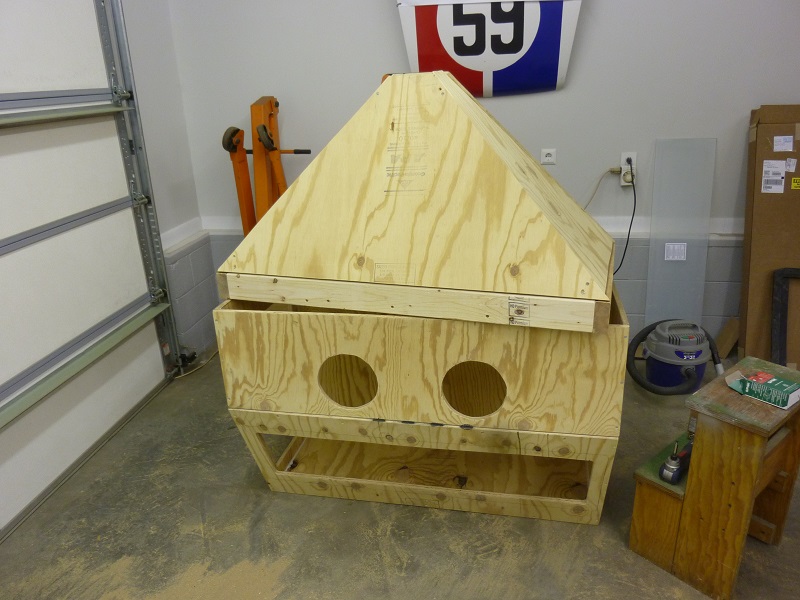

Assembly of top and bottom part

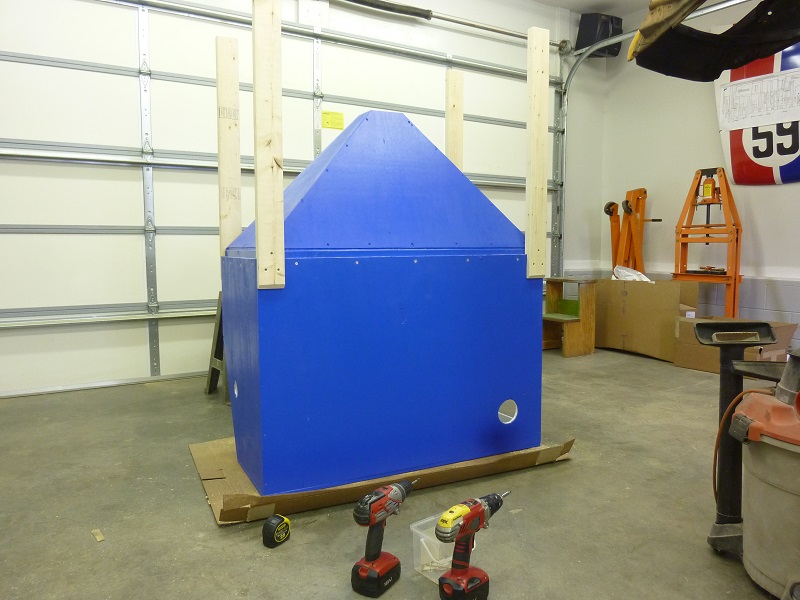

Now get some legs

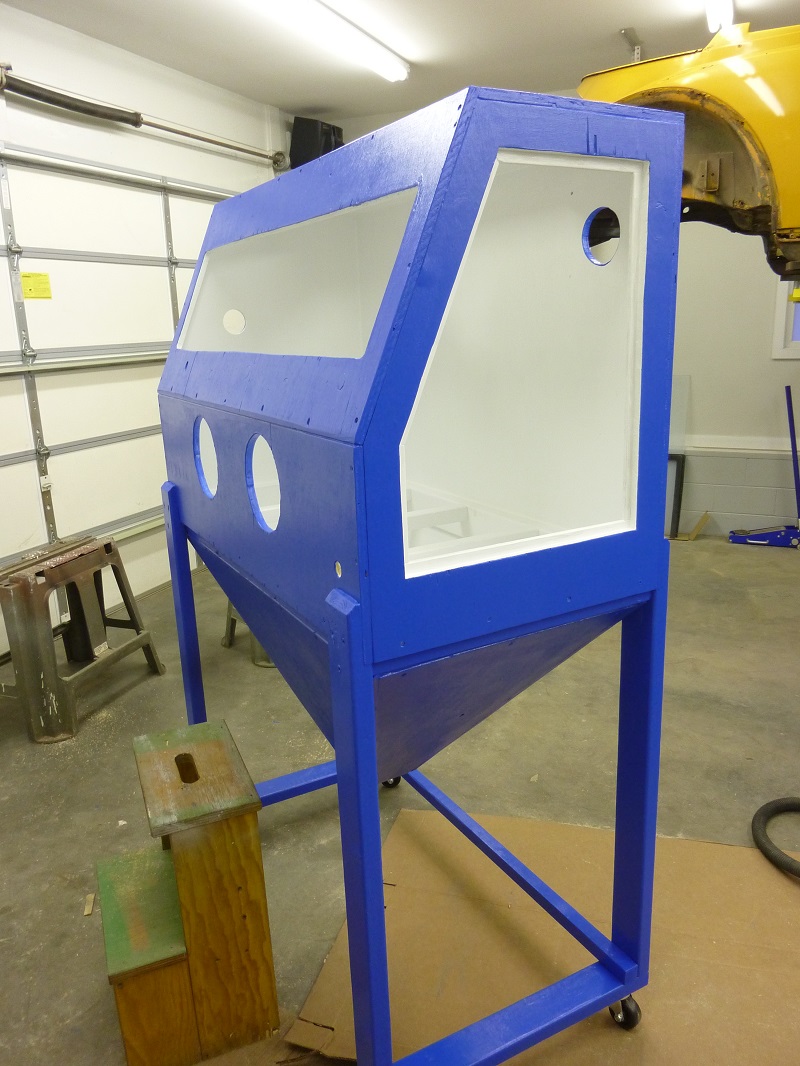

Here we go, it's standing up.

I just used some wire shelf pieces inside.

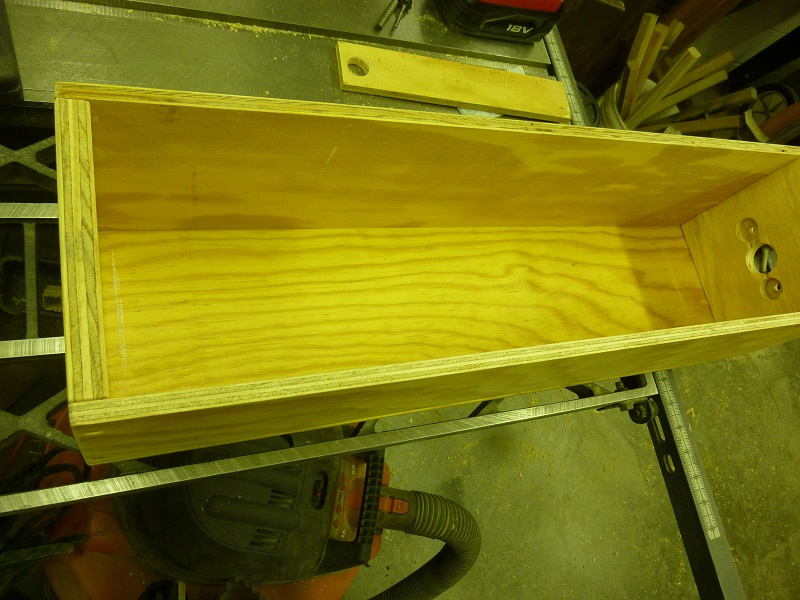

Building the top light

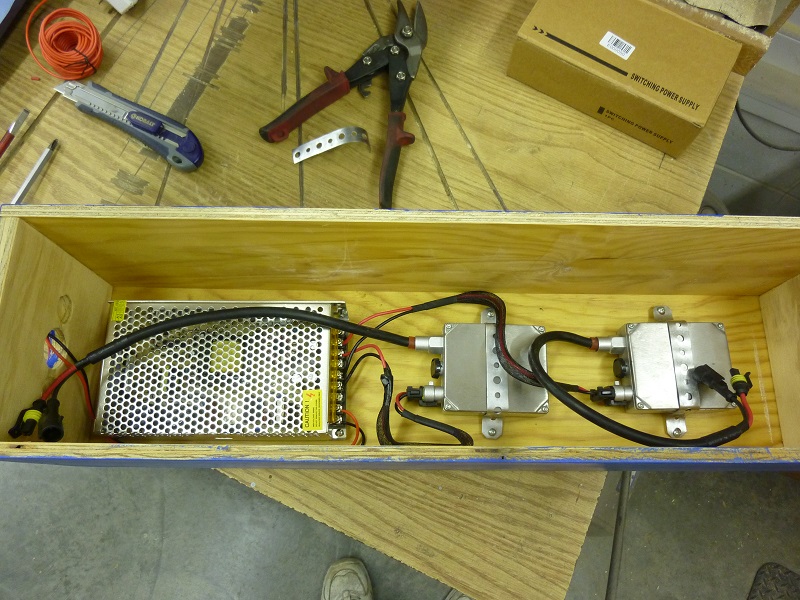

I had the 100W 12 DC driver sitting a round, and also 2 HID ballasts and bulbs

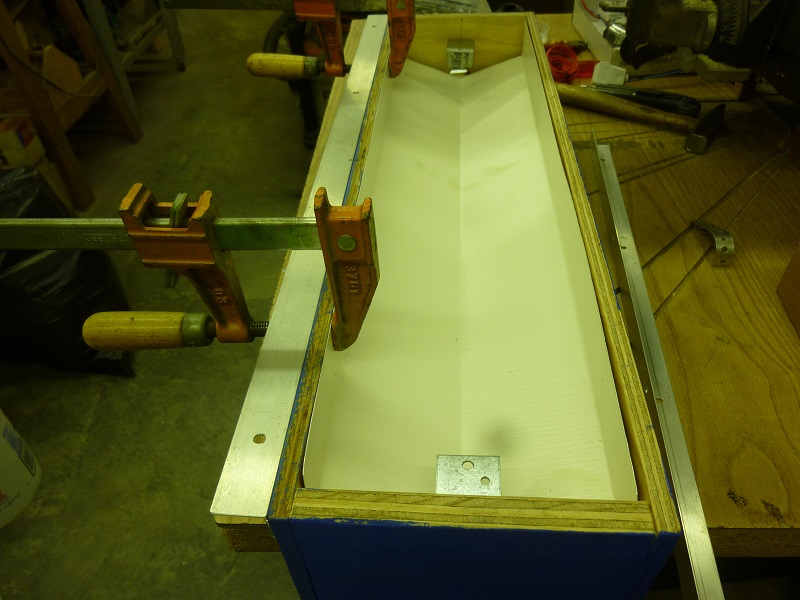

Some flashing left over makes a nice reflector

The 2 HID bulbs use only 70W

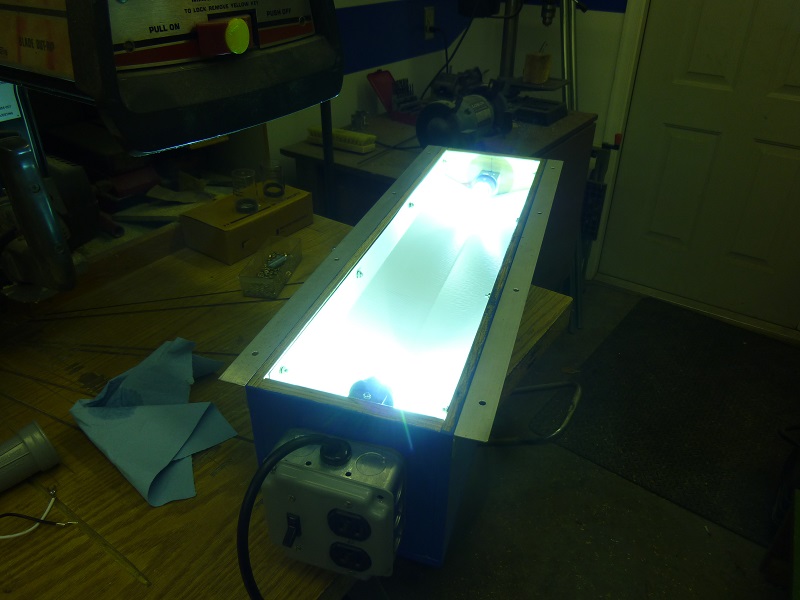

Here a quick test of the light

Looks like I have enough light in there
